The newest Novatek NTK96660 chipset
Image sensor: 12Mega Pixels CMOS-sensor
1.5 inch LCD panel
Image resolution: 12 Mega Pixels (4032 x 3024) / 10 Mega Pixels(3648 x 2736) / 8 Mega Pixels((3264 x 2448) / 5 Mega Pixels(2592 x 1944) / 3 MP(2048 x 1536) / 2MHD(1920 x 1080) / VGA(640 x 480) / 1.3M(1280 x 960)
Video resolution: 2K(2560 x 1440)30fps / 1080P(1920 x 1080)60fps / 720P(1280 x 720)120fps
Video compression format: H.264
Default resolution video: 1080P /2K
Default resolution picture: 4032 x 3024
Video format: MP4
Image format: JPG
4X digital zoom
Nondeformable HD 170 degree wide-angle fish-eye lens,
Memory slot for Micro SD card up to 32 GB (not included)
OSD language: English / French / German / Spanish / Italian / Portuguese / Simplied Chinese / Japanese / Traditional Chinese / Russian / Korean / Polish / Swedish / Czech
Connections: USB 2.0 / HDMI
900mAh Battery life: 80 minutes(1080P)
GENERAL Brand: SJCAM
Model: M10+ Plus
Type : Sports Camera
Chipset Name: Novatek
Chipset : Novatek 96660
Special Function: Time and date display, Cycle recording, Anti-shake, Digital zoom, HDMI, Microphone, Auto power on/off, Motion detection, SD/MMC card STORAGE Max External Card Supported: TF 32G (not included)
Class Rating Requirements: Class 6 or Above DISPLAY Screen Size: 1.5inch
Screen Type: LCD POWER Battery type: Removable
Capacity : 900mAh
Charge Way : USB charge by PC
Working time: 80 mins PRIMARY INFO. Wide Angle: 170 degree wide angle
Image Sensor: 12Mega Pixels CMOS-Sensor
Digital Zoom : 4X zoom VIDEO/IMAGE/AUDIO Decode Format: H.264
Video Format: MP4
Video Resolution : 2K(2560 x 1440)30fps, 720P (1280 x 720), 1080P (1920 x 1080)
Video System: NTSC, PAL
Video Frame Rate: 60fps, 120fps, 30fps
Video Output: HDMI
Image Format : JPG
Image Resolution : 2M (1920 x 1080), 12M (4032 x 3024), 1.3M (1280 x 960), 10M (3648 x 2736), VGA (640 x 480), 8M (3264 x 2448), 5M (2592 x 1944), 3M (2048 x 1536)
Audio System: Built-in microphone/speacker (AAC) FUNCTIONS Waterproof: Yes
Waterproof Rating : IP86
Loop-cycle Recording : Yes
Loop-cycle Recording Time: Off, 3min, 5min, 10min
Motion Detection: Yes
HDMI Output: Yes
USB Function: USB-Disk, PC-Camera
Interface Type: TF card slot, Micro HDMI, HDMI
Language: French, Korean, Portuguese, Spanish, Polski, Simplified Chinese, German, Italian, Traditional Chinese, Cesky, Russian, English, Swedish, Japanese DIMENSION/WEIGHT Product Weight: 0.069 kg
Package Weight: 0.660 kg
Product Size (L x W x H): 4.31 x 4.43 x 4.82 cm / 1.69 x 1.74 x 1.89 inches
Package Size (L x W x H): 22 x 13 x 10 cm / 8.65 x 5.11 x 3.93 inches PACKAGE CONTENTS Package Contents: 1 x Sports DV Camcorder, 1 x Waterproof Case, 1 x Bicycle Stand, 2 x Bases, 1 x Clip, 1 x Fixing Base, 3 x Switch Supports, 1 x Adapter, 2 x 3M Adhesive Tapes, 1 x USB Cable (About 70cm), 1 x Cleaning Cloth, 1 x Battery, 2 x Belts, 2 x Helmet Seats, 1 x English User Manual, 1 x Rear Case
1.This product can connect a mobile phone with android or IOS system or a panel computer via WIFI, the operation steps are as following:
A.Install SJCAM HD software on a mobile phone or a panel computer(you can search and download on Google Play for android system, or search and download on APP Store for IOS system.
B.After power on, press WIFI key on the camera, WIFI icon displays on the screen, M10 plus WiFi displays.
C.Enable WIFI on a mobile phone or a panel computer, search WIFI account M10 plus WIFI for the camera, then connect, and the initial Password ” 12345678” will display on M10 plus screen.
D.When WIFI connected, WIFI Connection Ready displays on the screen,
E.After SJCAM HD software operates on a mobile phone or a panel computer, images recorded by the camera will be real-time displayed on a mobile phone or a panel computer. You can operate via related icons related to the software or set function parameters of the camera
2.WI-FI password change
A. Power on and enter WIFI setting menu, the password can be set as per your requirement.
M10+ can be used as action camera, car dash camera, can mount on bike, helmet, etc.
And also can be assembled to this:
Important: Below The Bike Mount is only design for Bike, not for Motorcycle, not for Motorbike, please noted.
Menu of the SJ4000 Plus Camera
Orignal Factiory Kit:
1 * M10 Plus Sports camera
1 * Waterproof Case
1 * Bicycle Stand
1 *Base 1
1 *Base 2
1 * Clip
1 * Fixed Base
1 *Switch Support 1
1 * Switch Support 2
1 * Switch Support 3
1 * Helmet Base
1 * Bandage
1 * 3M Adhesive Tape
1 * Wire Rope
1 * Data Wire
1 * Wiper

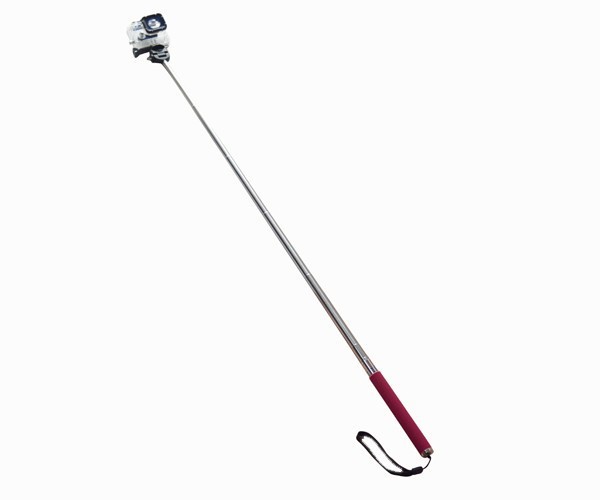

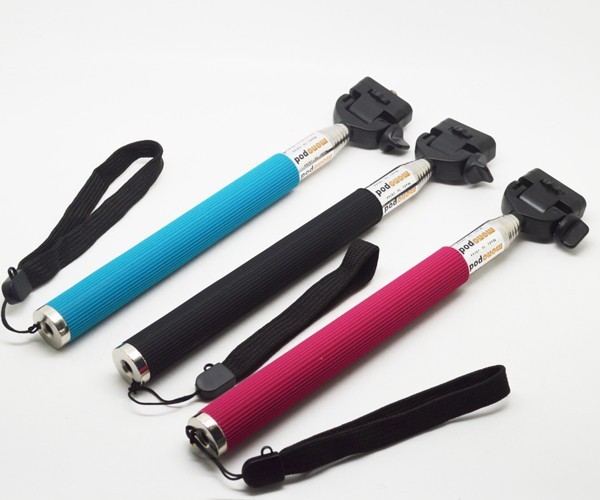

If you need Monopod, please click on the link:
If you need 32GB Class10 SD Card, please click on the link:
